Sewerage Division

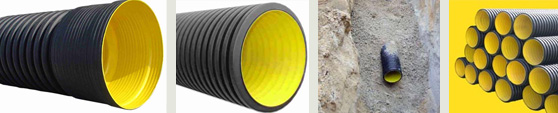

WEIDA DOUBLE WALL CORRUGATED HDPE PIPE
WEIDA Double Wall Corrugated HDPE Pipes are ideal for underground or aboveground gravity and low-pressure applications in the civil works and waste management sectors.
Applications:
| • Stormwater Drain Pipes - Blue (inner surface) & Black (outer surface) • Sewer Pipes - Yellow (inner surface) & Black (outer surface) • Cable Conduits - Black (inner surface) & Red (outer surface) |
Key Features And Advantages:
• • • • • • |
LIGHTWEIGHT - WEIDA Double Wall Pipe is lighter than traditional piping material, resulting in faster and less costly installation. COST EFFECTIVE AND LONG SERVICE LIFE - The cost of transportation, handling and installation can be reduced effectively. The longer life-span of WEIDA Double Wall Pipe also makes it cost effective. ANTI-CORROSION - WEIDA Double Wall Pipe can resist most of the aggressive corrosive elements. FLEXIBLE AND ABRASION RESISTANT - WEIDA Double Wall Pipe is long lasting because it can withstand wear and tear longer. HIGH FLOW CAPACITY - The smooth internal surface and the ability of HDPE material to resist long term abrasion and scaling provides the pipe with higher flow capacity. CHEMICAL RESISTANT - WEIDA Double Wall Pipe is highly resistant to chemical attacks from the extremes of pH in soil and sewerage effluents. A buried HDPE pipe does not decay or degrade and can virtually last for tens of years. |
Product Range:
| Nominal Diameter |
mm |
100 |
150 |
225 |
300 |
450 |
| Inches |
4 |
6 |
9 |
12 |
18 |
Product Standard:
Designed and manufactured to DIN 16961 Part 1 & 2 :
Thermoplastics pipes and fittings with profiled outer and smooth inner surfaces.
